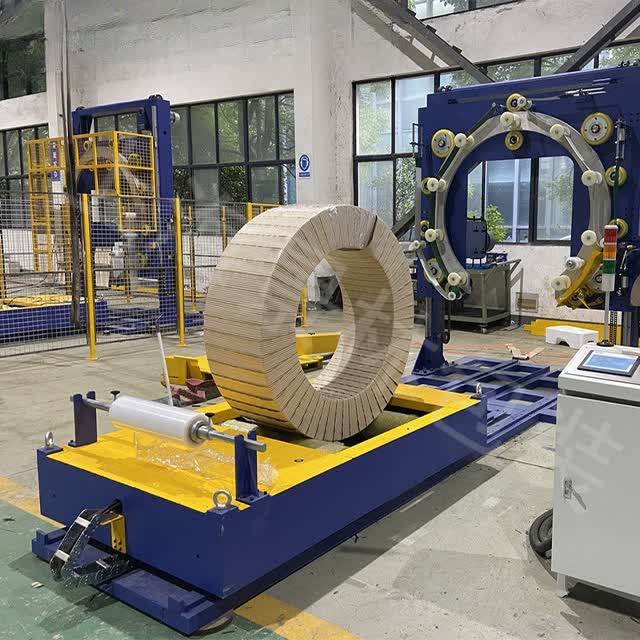

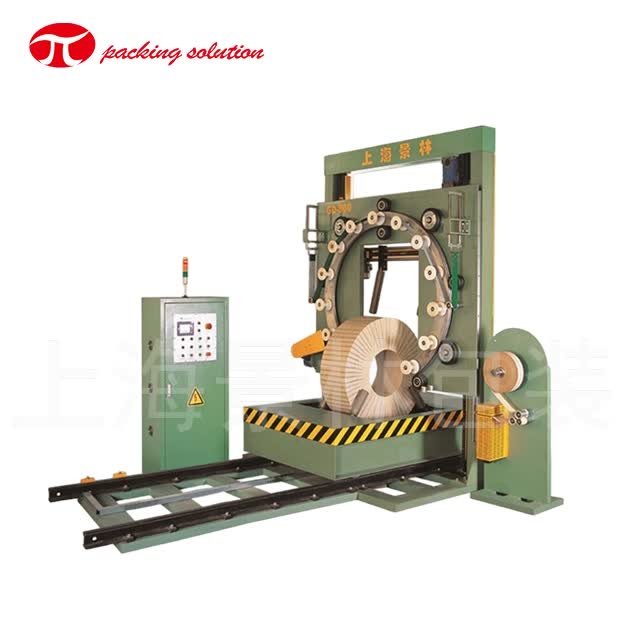

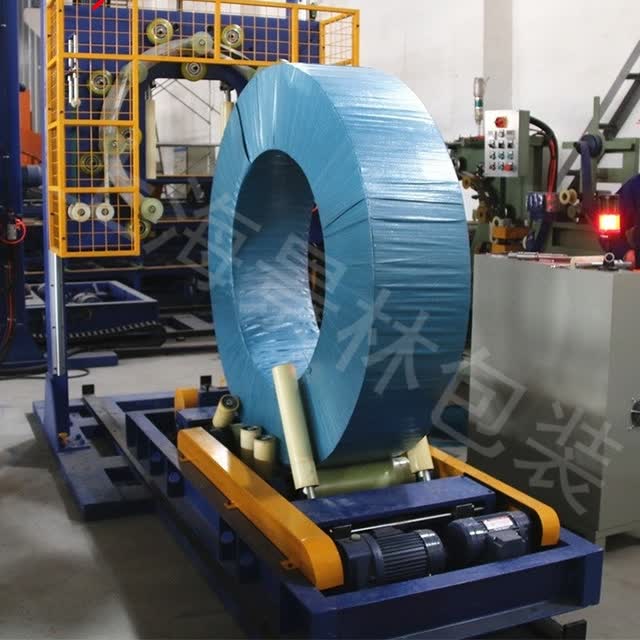

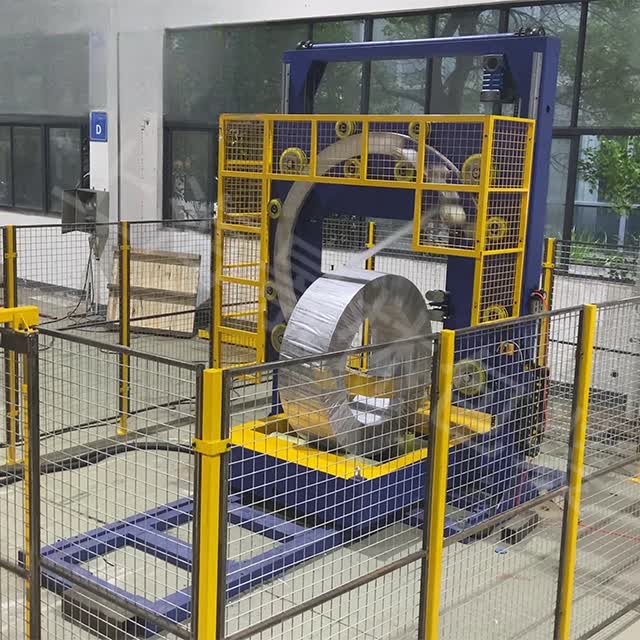

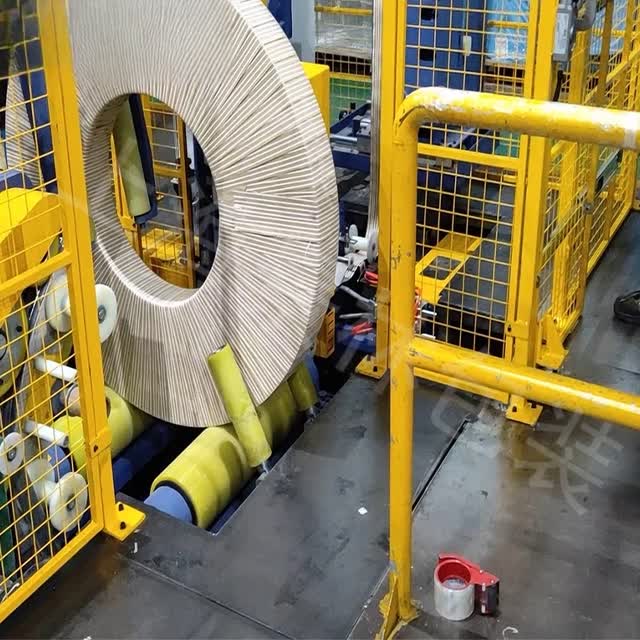

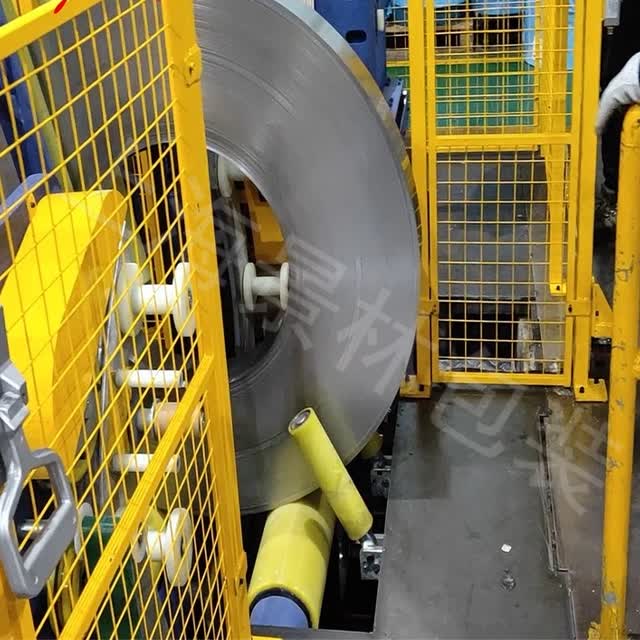

Product Features
- Fixed or moveable trolley operation,safe,convenient and effcient.
- Adopt PLC program control and HMI operation.
- Automatic alarming,fault will be displayed automatically.
- Simple operation by imputing OD,ID,width&corrected parameter of the coil,the material length and wrapping circles will be calculated automatically.
- The overlap and tension of the packing tape can be adjusted according to requirement.
- The ring height is adjustable,to suit for object with different ID and OD,
- High wear-resistant polyurethane friction wheel,integral casting structure for the ring.
- Synchronous wrapping system can be chose for wrapping two different material simultaneously.
- The rollers are wrapped by PU to protect the products effectively.
- Wide wrapping material can be used to improve the packing effciency.
- Adopt unique cutting system,which has overcame the weakness of the traditional cutters.
Product Specifications
| Model | GD300 | GD400 | GD600 | GD800 | GD1000 | GD1200 | |||
| Type | Fixed point | Reciprocating | Fixed point | Reciprocating | Fixed point | Reciprocating | Reciprocating | Reciprocating | Reciprocating |
| Width | ≤300 | ≤300 | ≤400 | ≤400 | ≤600 | ≤600 | ≤800 | ≤1000 | ≤1200 |
| OD | ≤1300 | ≤1500 | ≤1300 | ≤1500 | ≤1400 | ≤1600 | ≤1600 | ≤1800 | ≤1800 |
| ID | 508/610mm | ||||||||
| Weight | ≤2000kg | ≤2000kg | ≤3000kg | ≤3000kg | ≤4000kg | ≤6000kg | ≤6000kg | ≤8000kg | ≤12000kg |
| Ring Speed | 80r/min | 80r/min | 70r/min | 70r/min | 60r/min | 60r/min | 50r/min | 40r/min | 30r/min |
| Roller Speed | 5-8m/min | 5-8m/min | 4-7m/min | 4-7m/min | 4-6m/min | 4-6m/min | 3-5m/min | 3-5m/min | 2-4m/min |
| Machine Weight | 800KG | 1000KG | 1000KG | 1200KG | 1500KG | 1800KG | 2000KG | 2500KG | 3000KG |
| Power | 3.0KW | 4.0KW | 3.5KW | 4.5KW | 5.5KW | 7,0KW | 8.0KW | 10KW | 12KW |
| Wrapping Material | Composite paper tape, woven tape, anti-rust tape, stretch film, etc. | ||||||||
