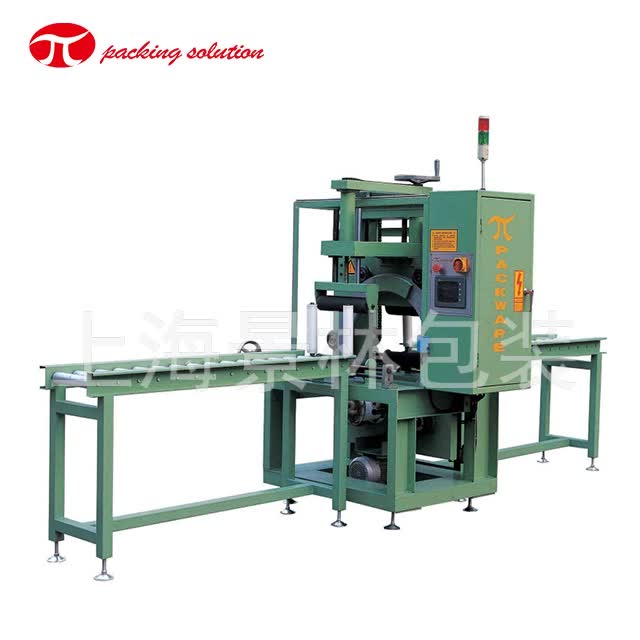

Profile Wrapping Machine

The GG series horizontal stretch wrapper is widely used for wrapping welded pipe,samless pipe,stainless steel pipe,copper tube,aluminum tube,plastic pipe,bars,profile and other long-shaped products.The wrapped product is well decorated,with good effect of rust-proof,dust-proof,water-proof,anti-wear and anti-damage.

  • Adopt PLC program control and HMI operation.
  • Automatic fault alarming and automatic display the fault contents.
  • Friction structure adopted for safe,steady and strong operation.
Get a Quote Send Email Now

    Product Features

    • Adopt PLC program control and HMI operation.
    • Automatic fault alarming and automatic display the fault contents.
    • Friction structure adopted for safe,steady and strong operation.
    • The conveyor material can be chain plates,rollers or belt.
    • Automatic object tracking,precise positioning,convenient and safe for operation.
    • Special tension adjust system ensures uniform tension of the packing material.
    • The turning ring height is adjustable,to suit for object with different diameter.
    • Can be equipped with mechanical hand for automatic film feeding and cutting,safe and effcient.
    • Upper and side protective rollers can be optioned to suit for single pipe or light objects.
    • Also can be used for wrapping short objects,with wide application.

    Product Specifications

    ItemData
    ModelGG200GG400GG600GG800GG1000GG1600
    Product Length1000-6000mm1500-6000mm2000-9000mm2000-9000mm2000-9000mm2000-9000mm
    Max circumcircle diameter200mm400mm600mm800mm1000mm1600mm
    Loading200kg1000kg1500kg3000kg4000kg8000kg
    Ring speed100r/min90r/min70r/min60r/min50r/min30r/min
    ConveyorRoller or beltRoller or beltRoller or belt or shelfRoller or shelfRoller or shelfRoller
    Conveyor length6000mm front and rear or customized according to actual requirements6001mm front and rear or customized according to actual requirements6002mm front and rear or customized according to actual requirements6003mm front and rear or customized according to actual requirements6004mm front and rear or customized according to actual requirements6005mm front and rear or customized according to actual requirements
    Conveyor speed6-12m/min6-12m/min8-12m/min8-12m/min5-10m/min4-8m/min
    Conveyor height750mm750mm800mm900mm1000mm120mm
    Wrapping MaterialWoven tape/composite paper tape/wrap film/non-woven fabric, etc.Woven tape/composite paper tape/wrap film/non-woven fabric, etc.Woven tape/composite paper tape/wrap film/non-woven fabric, etc.Woven tape/composite paper tape/wrap film/non-woven fabric, etc.Woven tape/composite paper tape/wrap film/non-woven fabric, etc.Woven tape/composite paper tape/wrap film/non-woven fabric, etc.
    Material SizeWidth:60-100mmOuter diameter:200mmInner diameter:55mmWidth:150-200mmOuter diameter:250mmInner diameter:55mmWidth:150-200mmOuter diameter:250mmInner diameter:55mmWidth200-300mmOuter diameter:400mmInner diameter:55mmWidth:150-300mmOuter diameter:400mmInner diameter:55mmWidth:150-300mmOuter diameter:400mmInner diameter:55mm
