Product Features

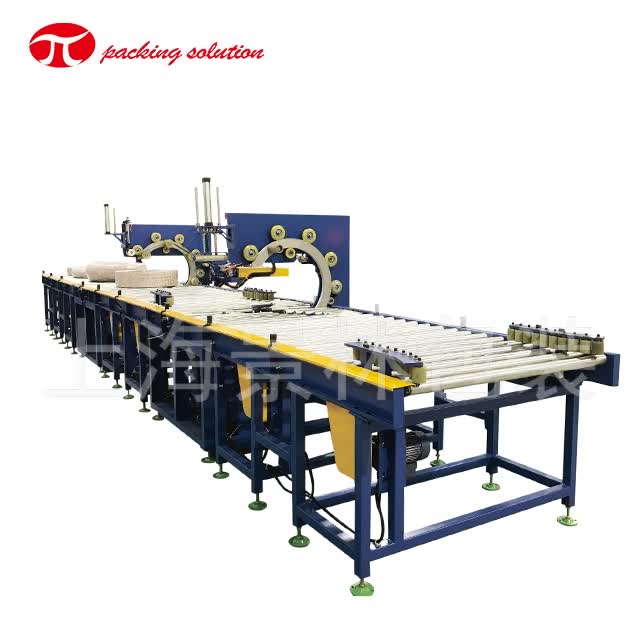

- Horizontal structure, the goods can be loaded to the packing station by hoisting, conveying or by manual.
- Different wrapping material release system can be chose.
- Adopt PLC program control and HMI operation.
- Automatic fault alarming and automatic display the fault contents.
- Automatic and accurate positioning of turning ring
- Taper rollers for driven, side rollers for protection.
- Upper press rollers can be equipped for light objects.
- The overlap rate and tension of the packing tape can be adjusted according needs.
- The turning ring can be moved forth and back, to suit for object with different ID and OD
- High antifriction PU adopted for friction wheels; whole casting structure for turning ring.
- Synchronous wrapping system can be chose for wrapping two different material simultaneously.
- The supportive and protective rollers are wrapped by PU.
Product Specifications
| Model | GW/KW100 | GW/KW200 | GW/KW300 | GW/KW400 | |
| Wrapping Type | Inner or Outer Wear | Inner or Outer Wear | Outer Wear | Inner or Outer Wear | |
| Width | ≤150mm | ≤300mm | ≤200mm | ≤300mm | ≤400mm |
| OD | ≤400mm | ≤1200mm | ≤1000mm | ≤1200mm | 1000-2500mm |
| ID | ≥150mm | ≥400mm | ≥300mm | ≥300mm | ≥600mm |
| Weight | ≤25kg | ≤500kg | ≤800kg | ≤2000kg | ≤2000kg |
| Wrapping Material | Stretch film, woven tape, composite paper tape, etc. | Stretch film, woven tape, composite paper tape, etc. | Composite paper tape, woven tape, etc. | Stretch film, woven tape, composite paper tape, etc. | |
| Material Size | Width:50mm ID:20/55mmOD:80-450mm | Width:90mm ID:55mmOD:200-450mm | Width:90mm ID:55mmOD:200-450mm | Width:150mm ID:55mmOD:300-450mm | |
| Ring Speed Worktable Height | 60-100r/min700mm | 70r/min750mm | 70r/min800mm | 70r/min800mm | 70r/min700mm |
| Power Supply Air Supply | AC/380V/50Hz6-8kgf/cm² | AC/380V/50Hz6-8kgf/cm² | AC/380V/50Hz6-8kgf/cm² | AC/380V/50Hz6-8kgf/cm² | AC/380V/50Hz6-8kgf/cm² |
| Convey Mode | Artificial | Artificial | Unpowered transportation | Unpowered transportation | Hoisting |
