Scope of Applicatipn
800mm-1500mm
OD:
508/610mm
ID:
60mm~400mm
Width:
≤4T
Weight:
LLDPE stretch film/compound paper
Wrapping Material:
30%~80% 30%~80% adjustable
wrapping overlap:
film roll width 90mm, roll OD 500mm,roll lD 76mm
Wrapping material size:
Basic Composition
The fully auto packing line is composed of turnstile, coil picking system, coil car, wrapping machine, stacking system, steel strapping station, electrical cabinet, guardrails, hydraulic station &etc.
The semi-auto packing line is composed of coil aggregate car, pushing system, wrapping machine, coil tilter, electrical cabinet, safe guards, hydraulic station& etc.

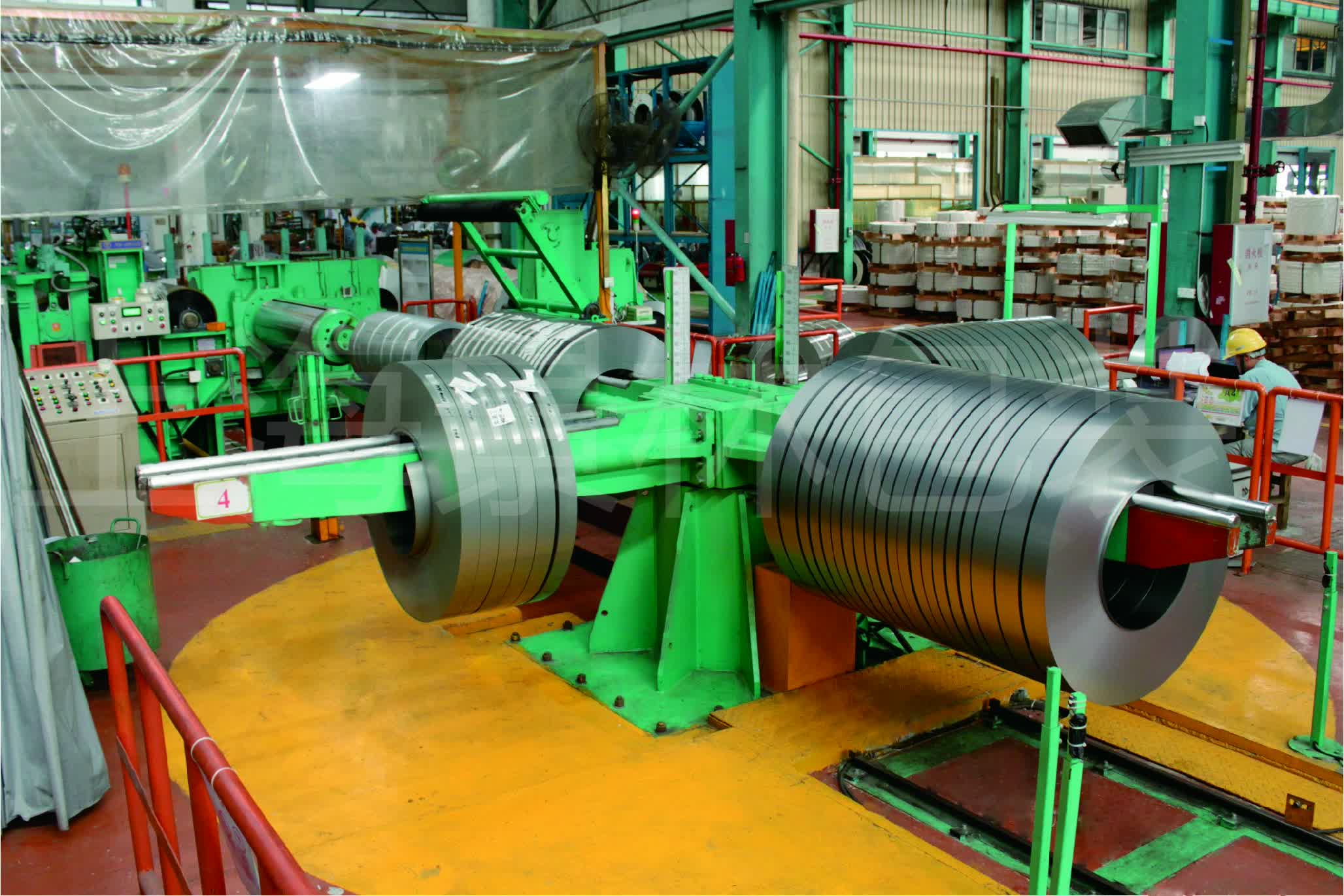

Turnstile

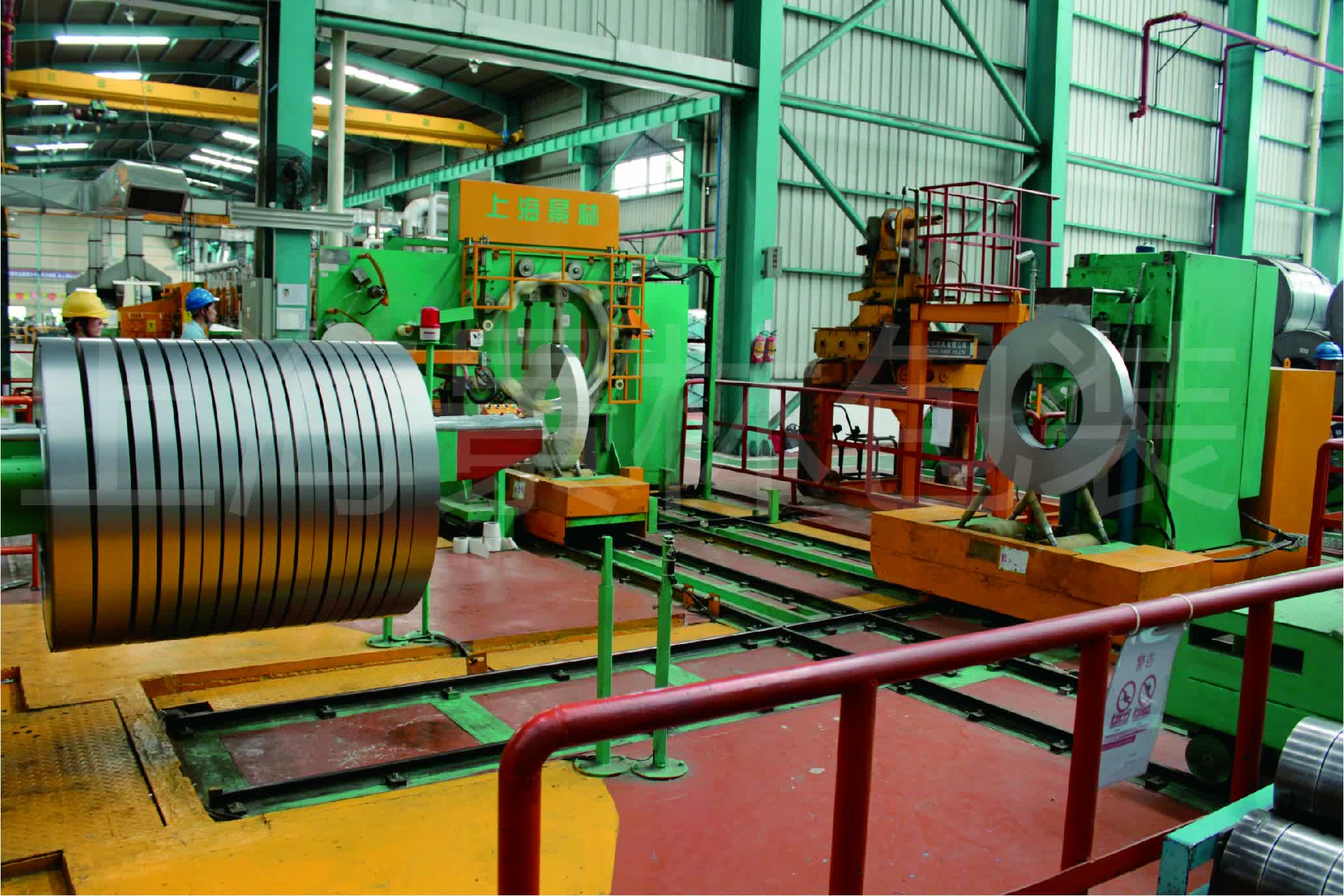

Coil Packing＆Tilting System

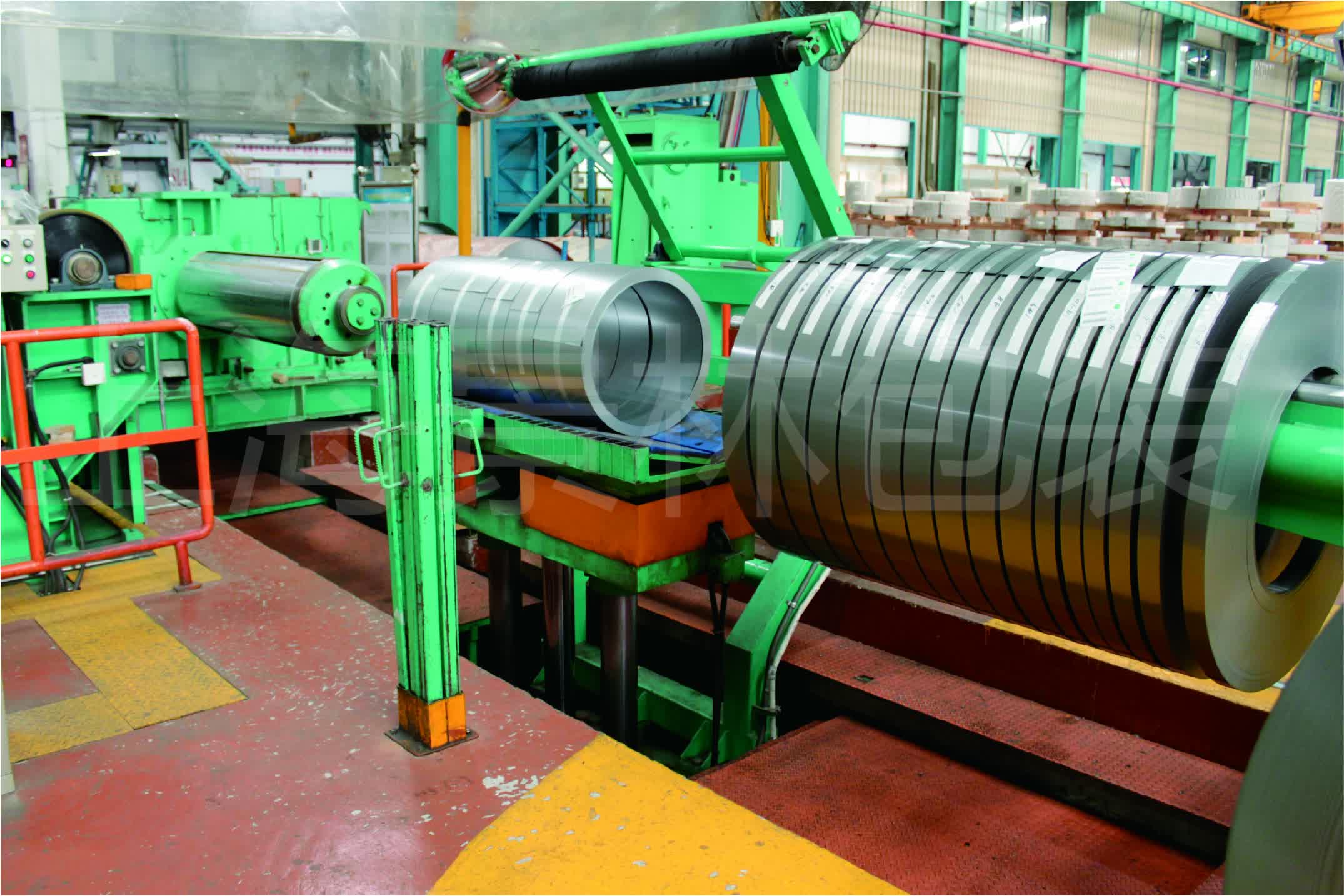

Turnstila Feeding Trolley

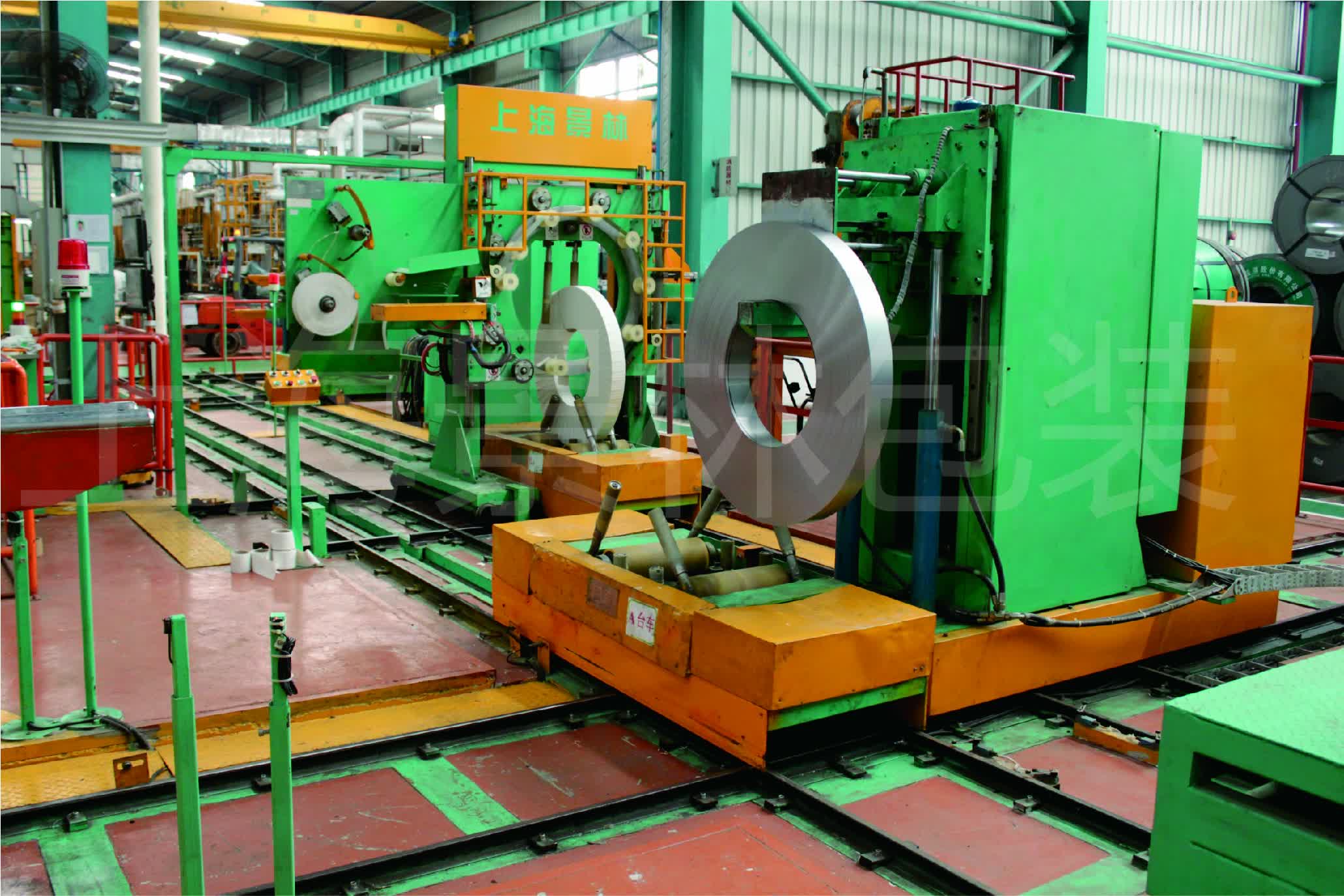

Coil Trolley

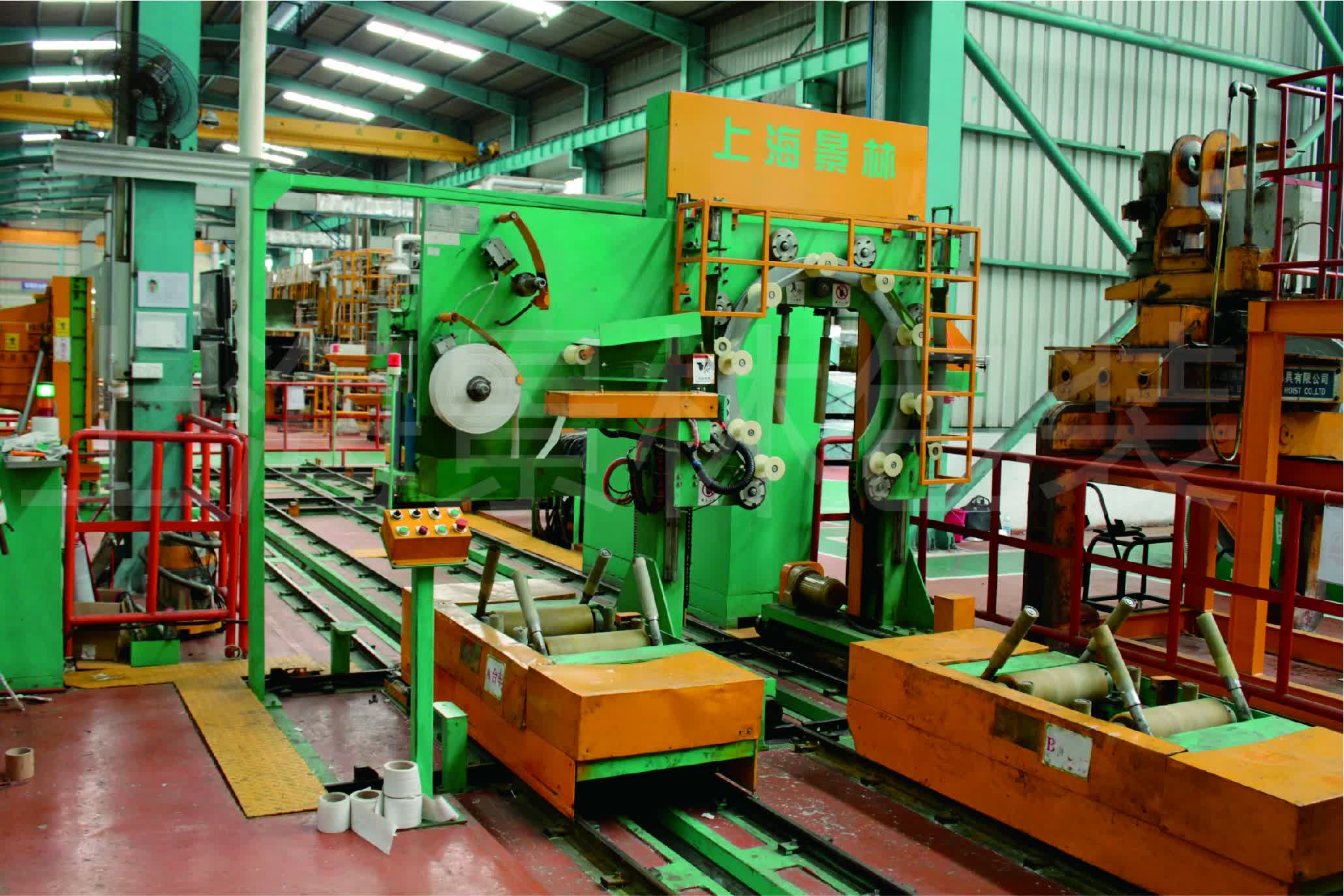

Double Trolley for Coil Wrapping Machine

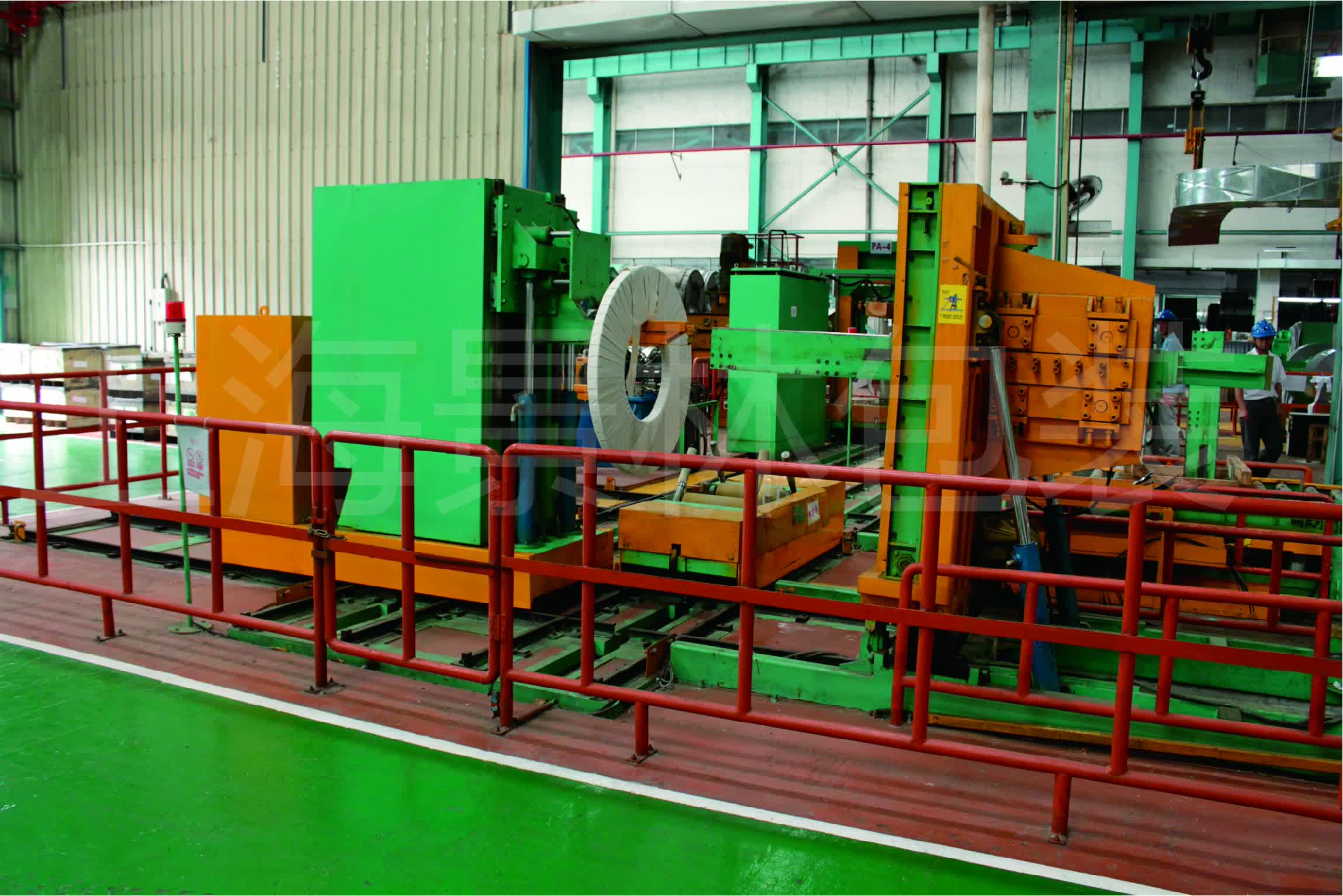

Coil Stacking＆Tilting System

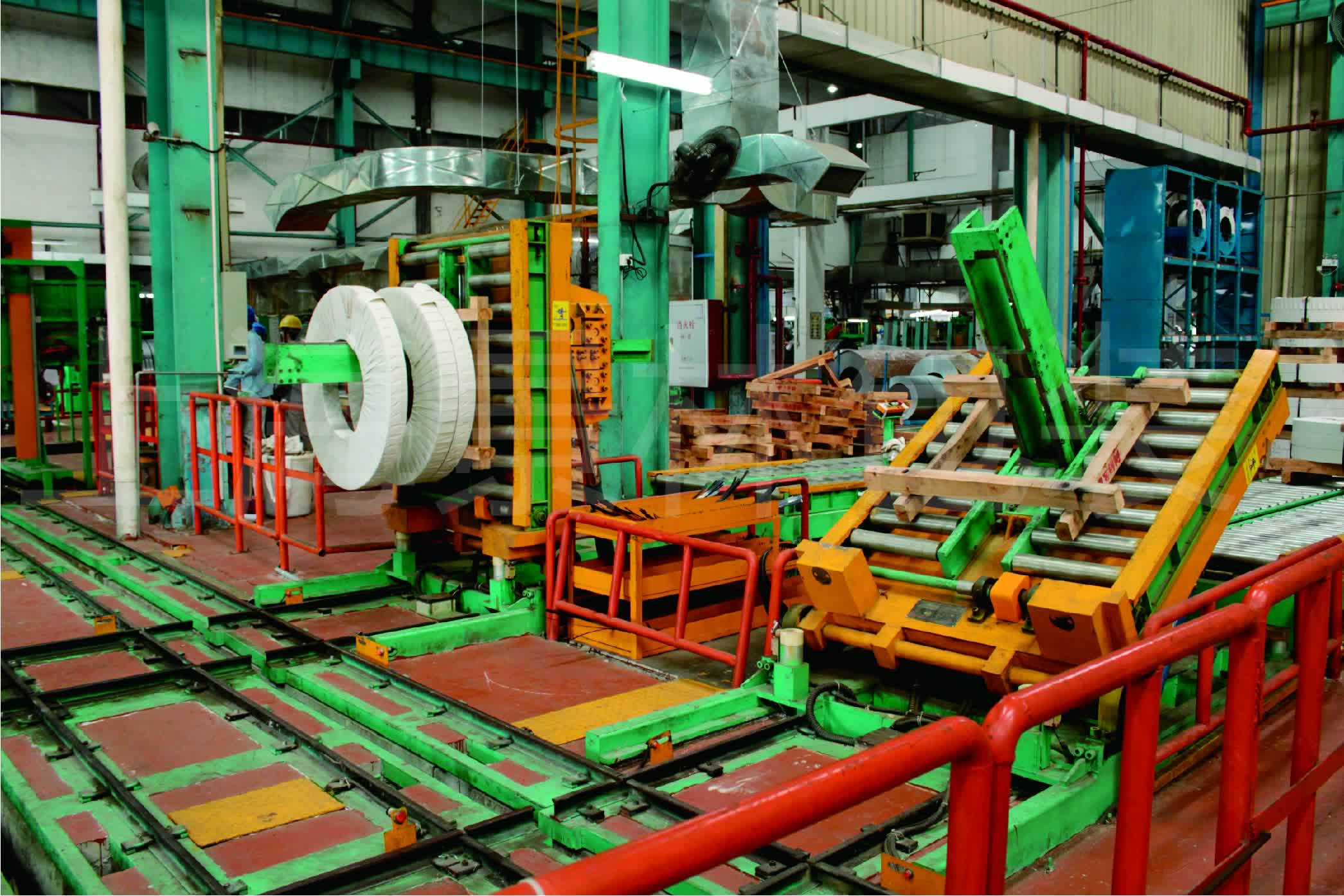

Double-station Stacking＆Tilting System

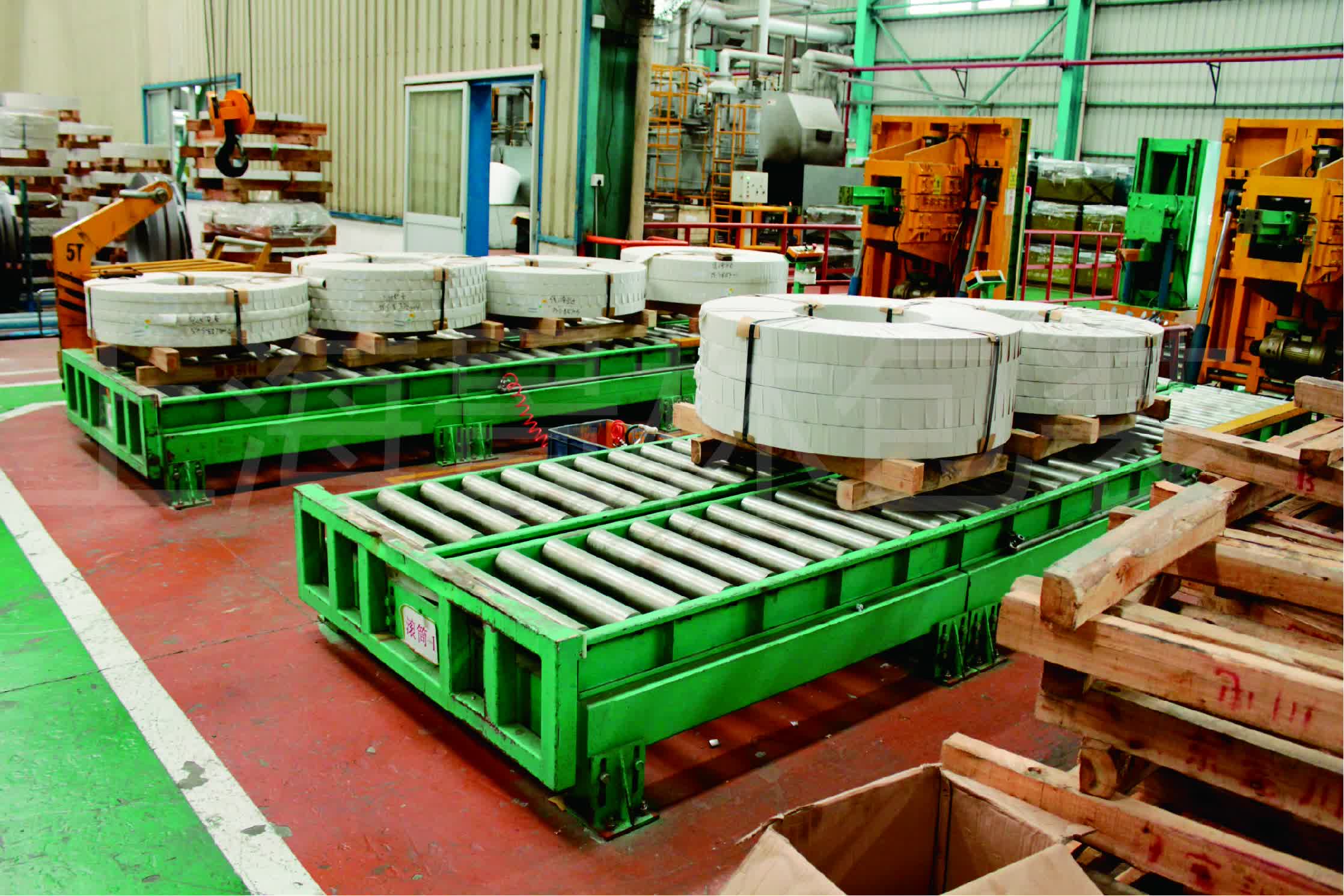

Storage Line
