Scope of Applicatipn
20mm-120mm
Tube diameter:
4000-6000mm
Length:
≤3T
Bundle Weight:
300-700mm
Bundle Diameter:
Basic Composition
The line is composed of the elevating system, counting system,ends aligning system,shifting system,bundling sysetm,strapping system,wrapping machine,ends covering machine,and fixing system,weighing system,electrical cabinet,guardrails,hydraulic station&etc.
On-line Feeding Station
Pipe Hexagonal Stacking
Pipe Rectangular Stacking

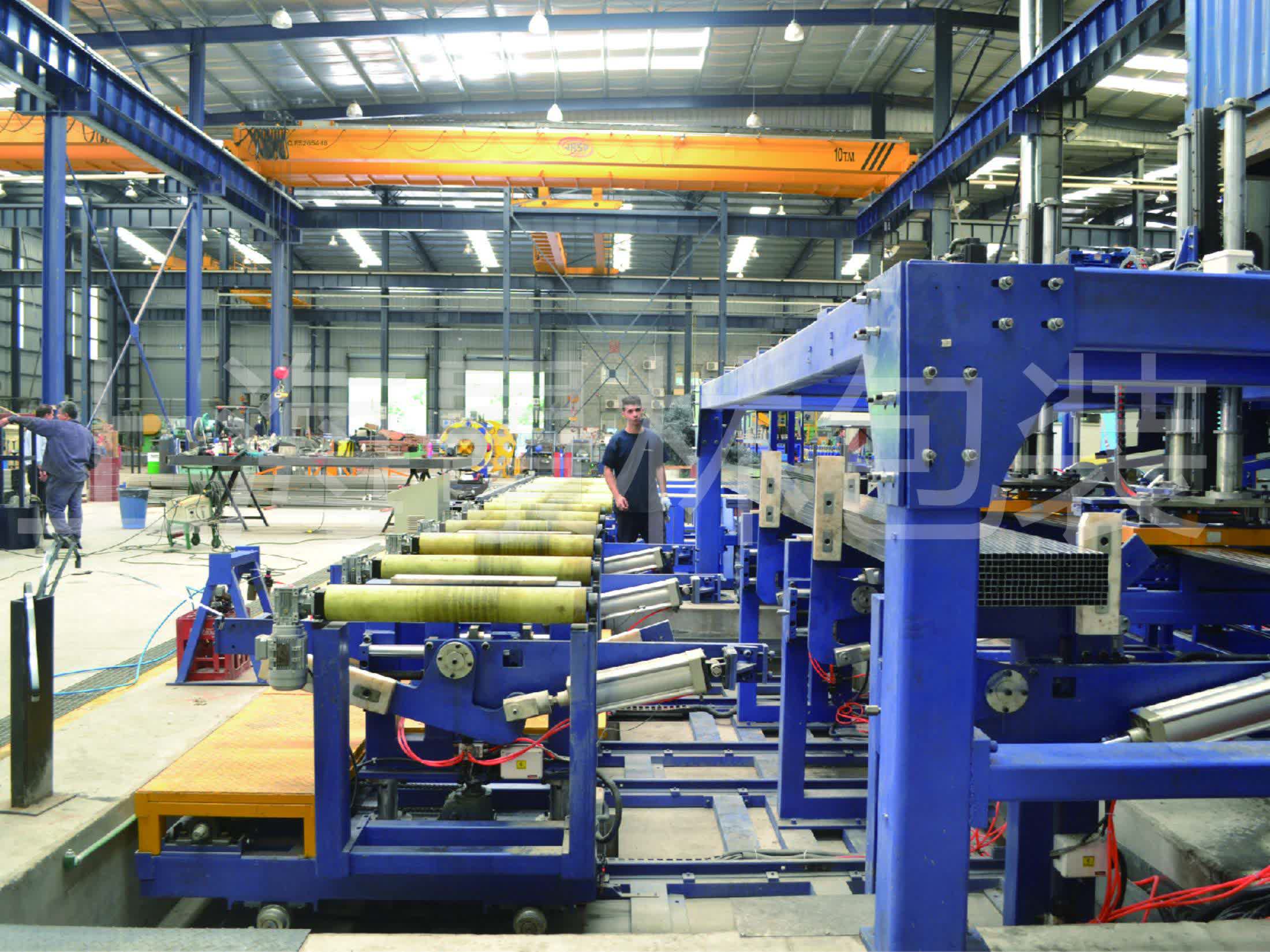

Forming＆Transfer System
Manual Hoisting
Weighing＆Storage Station
